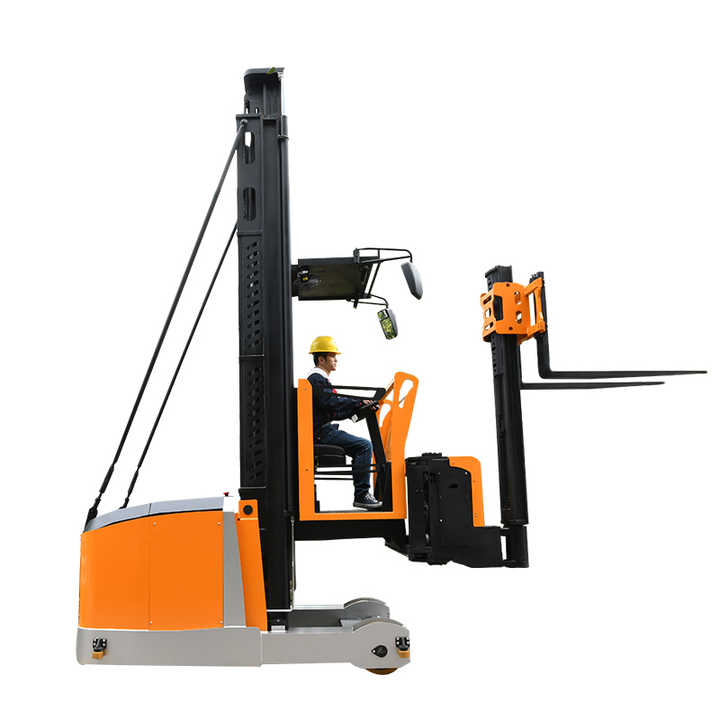

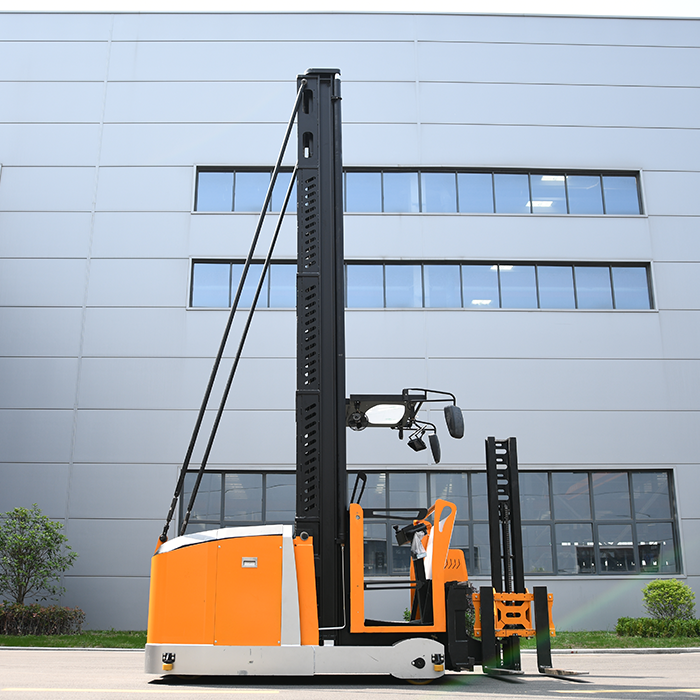

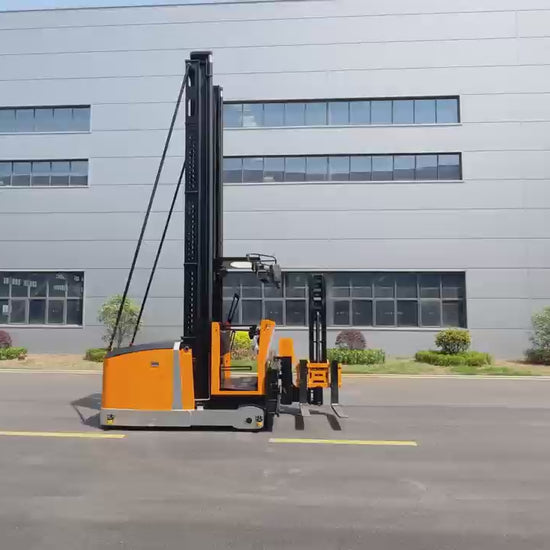

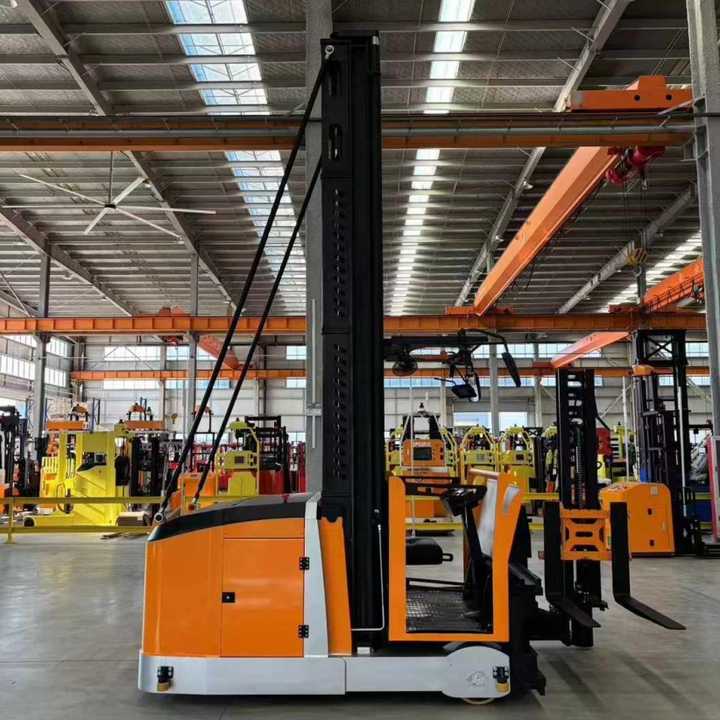

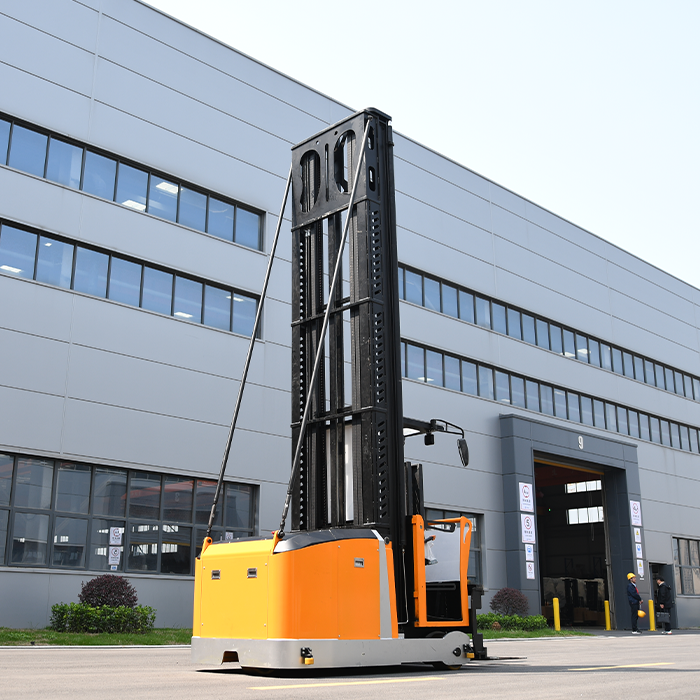

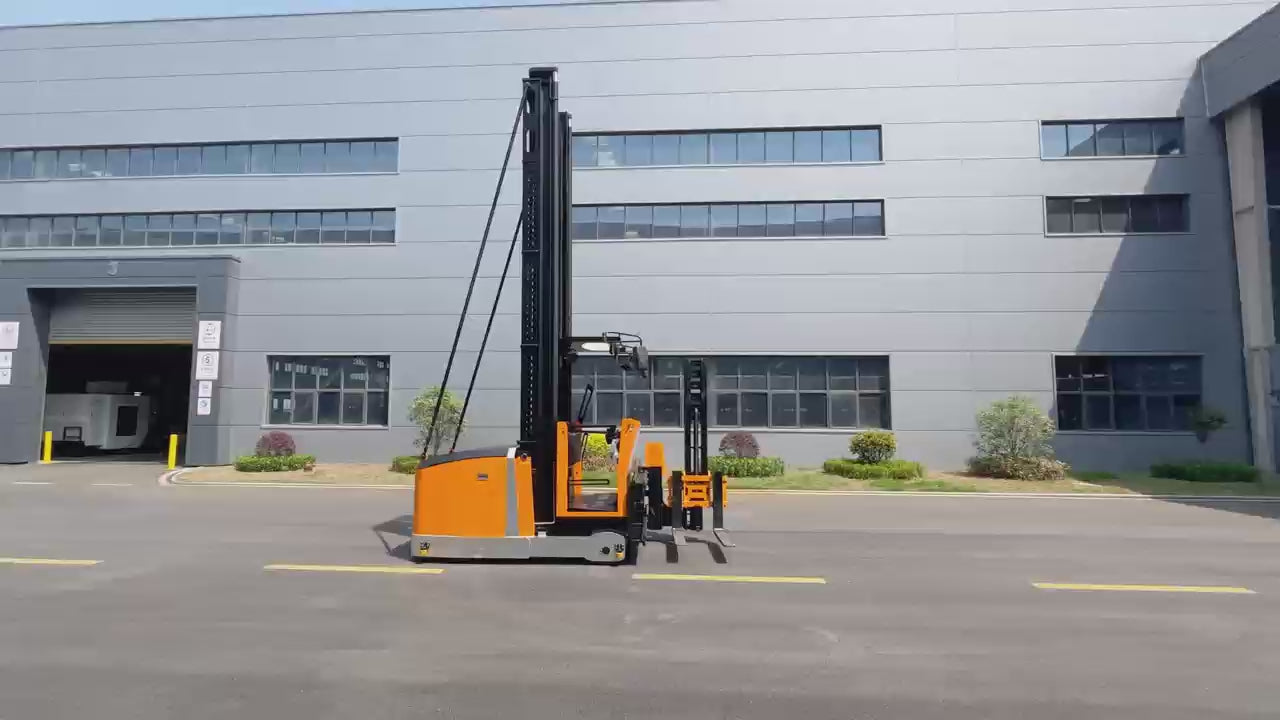

Narrow Aisle Forklift, 3 way Electric Pallet Stacker Man up Type Reach Stacker with 10 Meter Lifting Height. Sopport customized.
Specification:
|
Features
|
1.1
|
Model
|
|
CDMC15-75
|
|
1.2
|
Power Type
|
Q(kg)
|
1500
|
|
|
1.3
|
Operation mode
|
C(mm)
|
600
|
|
|
1.4
|
Load Capacity
|
X(mm)
|
384
|
|
|
1.5
|
Load Center
|
Y(mm)
|
1913
|
|
|
Weight
|
2.1
|
Total Weigh
|
kg
|
9300
|
|
Wheels, chassis
|
3.1
|
Wheel type
|
|
PU
|
|
3.2
|
Front wheel specification
|
∅×w(mm)
|
φ350*200
|
|
|
3.3
|
Driving wheel specification
|
∅×w(mm)
|
φ400*160
|
|
|
3.4
|
Number of tires front/drive
|
|
2/1X
|
|
|
3.5
|
Wheel base, front wheel
|
b10(mm)
|
1190
|
|
|
Dimension
|
4.1
|
Closing height of the mast
|
h1(mm)
|
4480
|
|
4.2
|
Free lifting height
|
h2(mm)
|
1500
|
|
|
4.3
|
Lifting height
|
h3(mm)
|
7500
|
|
|
4.4
|
Maximum height of mast during operation
|
h4(mm)
|
8400
|
|
|
4.5
|
Top guard height
|
h14(mm)
|
2412
|
|
|
4.6
|
Fork height when mast retracted
|
h13(mm)
|
45
|
|
|
4.7
|
Vehicle length
|
l1(mm)
|
3679
|
|
|
4.8
|
Body length
|
l2(mm)
|
2448
|
|
|
4.9
|
Body width
|
b1(mm)
|
1474
|
|
|
4.10
|
The fork is wide outside
|
b5(mm)
|
260-720
|
|
|
4.11
|
Fork size
|
s/e/l(mm)
|
45*125*1220
|
|
|
4.12
|
Training wheel outside width
|
b5(mm)
|
1609
|
|
|
4.13
|
Minimum ground clearance
|
m2(mm)
|
80
|
|
|
4.14
|
Stacking channel width, pallet 1200×1200
|
Ast(mm)
|
1700
|
|
|
4.15
|
Main channel width
|
mm
|
4410
|
|
|
4.16
|
Rail height
|
mm
|
180
|
|
|
4.17
|
Minimum turning radius
|
Wa(mm)
|
2300
|
|
|
Property
|
5.1
|
Travel speed (no load/full load)
|
km/h
|
8/7
|
|
5.2
|
Lifting speed (no load/full load)
|
m/s
|
0.35/0.3
|
|
|
5.3
|
Descent speed (no load/full load)
|
m/s
|
0.3/0.35
|
|
|
5.4
|
Maximum climbing capacity(no load/full load)
|
％
|
≤10
|
|
|
5.5
|
Service brake
|
|
electromagnetism
|
|
|
Electric machine
|
6.1
|
Drive motor power
|
kw
|
8
|
|
6.2
|
Boost motor power
|
kw
|
12
|
|
|
6.3
|
Battery type
|
|
Lead-acid battery
|
|
|
6.4
|
Battery voltage/capacitance
|
V/Ah
|
48V540Ah
|
|
|
|
6.5
|
charger
|
V/A
|
48V/75A
|
|
Other
|
7.1
|
Drive control mode
|
|
AC
|
|
7.2
|
Driver's ear noise level according to EN12053
|
dB(A)
|
75
|
