Astaclift

Electric Double Deep Scissor Forklift Reach Stacker

Load Capacity 1500kg

Lift Height 3500mm 3600mm 4000mm 4500mm 4800mm 5500mm 7000mm

Quantity

Electric Double Deep Scissor Stacker 1.5T Reach Forklift Electric Truck with 7m Lifting Height, Narrow Aisle Reach Truck Stacker Moving Tools.

Specification:

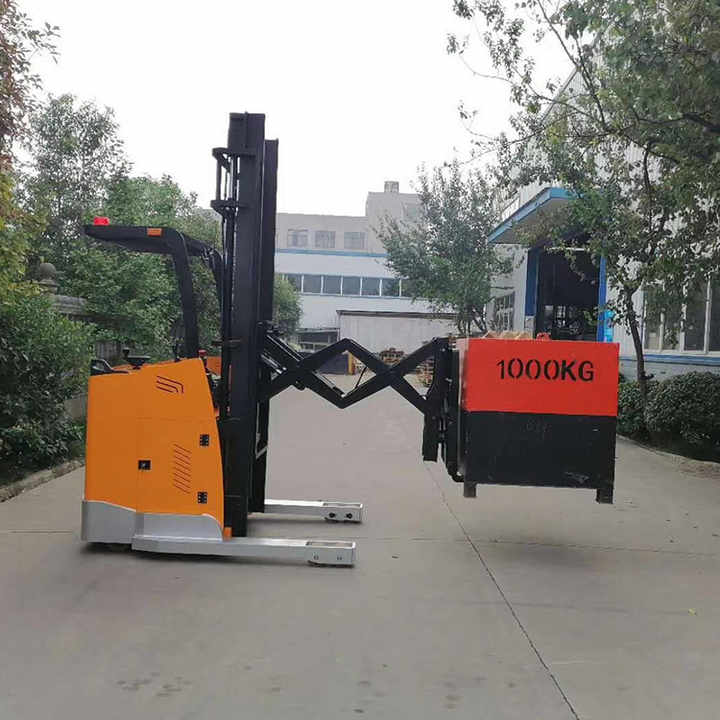

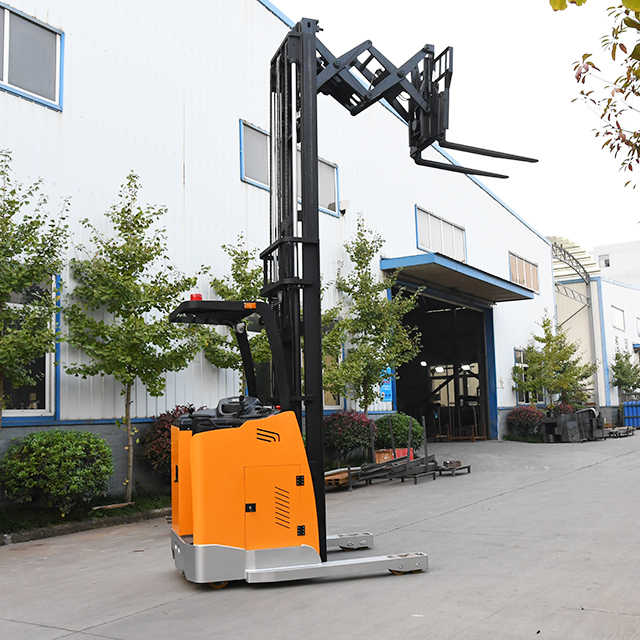

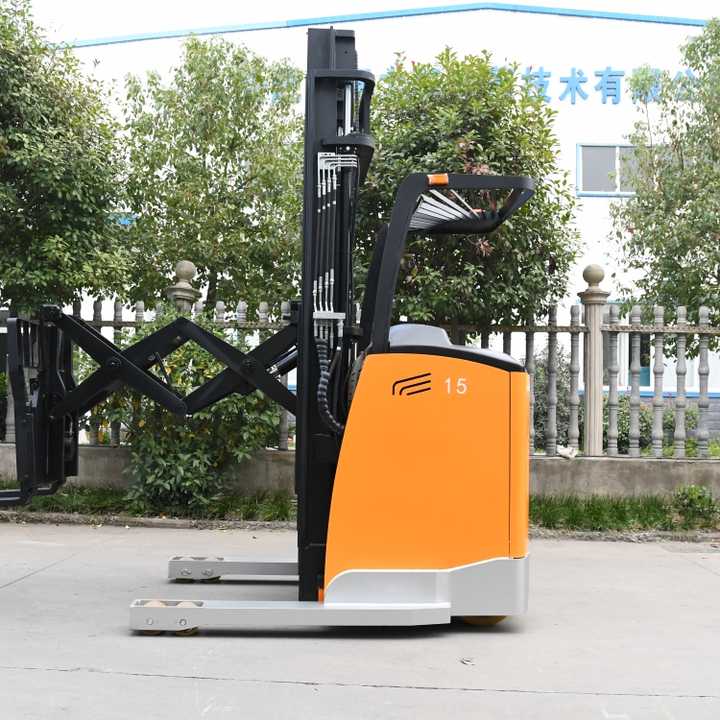

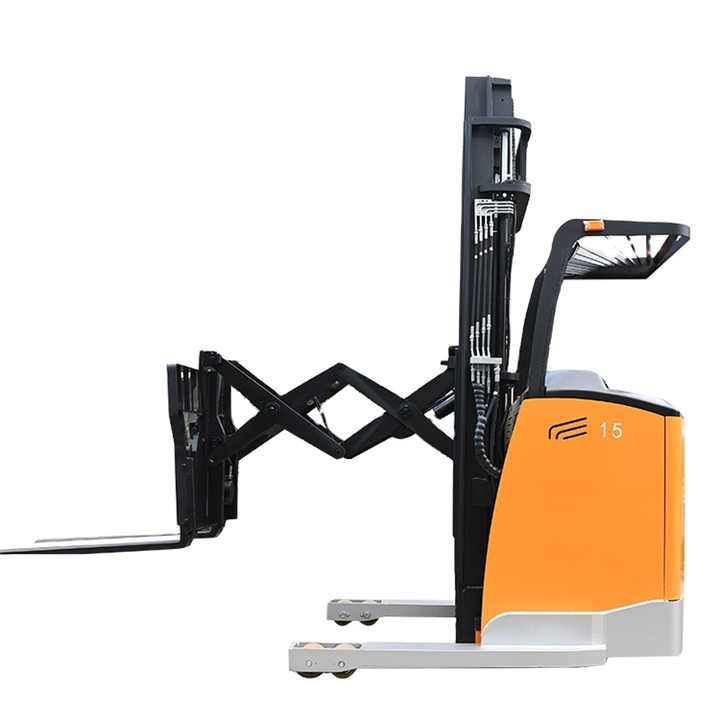

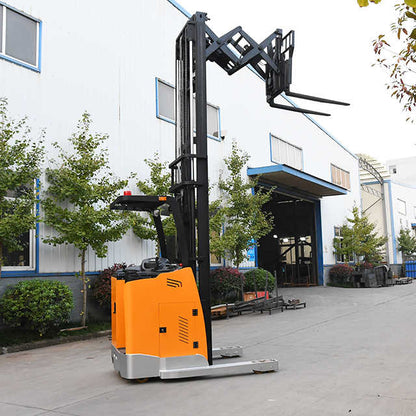

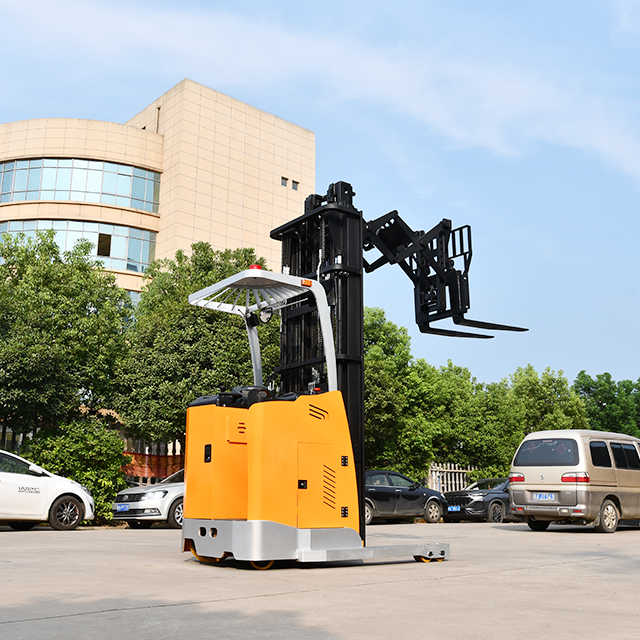

Double Deep Reach forks,with forks reach and backward, to load and move the pallets, suites for non-standard pallet. Work in narrow aisle.
Telescoping distance 1200 MM, biggest reach depth is 1500MM.
Full AC Drive system, small size,light weight, maintenance-free, no carbon brush. Works stable and efficiently.

Model		CQD15X-45
1.1	Power Type		Electric
1.2	Operation mode		stand-on
1.3	Load Capacity	Q(Kg)	1500
1.4	Load Center	C(mm)	500
1.5	Wheelbase	Y(mm)	1562
2.1	Total Weigh	kg	3540
3.1	Wheel Type		PU
3.2	Driving Wheel	∅×w(mm)	Ф382*142
3.3	Front Wheel	∅×w(mm)	Ф145*100
3.4	Balance wheel specification	∅×w(mm)	Ф180*76
3.5	Number of wheels (front wheel /X drive wheel/balance wheel)		4/2X/2
3.6	Wheel base(Front)	b10(mm)	1562
4.1	Closing height of the mast	h1(mm)	3050
4.2	Lifting height	h3(mm)	4500
4.3	Maximum height of mast during operation	h4(mm)	5585
4.4	Top guard height	h14(mm)	2280
4.5	Body length (without fork/with fork)	l2(mm)	2410/1977
4.6	Body width	b1(mm)	1390
4.7	Fork size	s/e/l(mm)	351001070
4.8	Fork size adjustment	b5(mm)	210-680
4.9	Minimum ground clearance(wheelbase center)	m2(mm)	65
4.10	Main channel width，（1200 cross fork placement)	Ast(mm)	2835
4.11	Minimum turning radius	Wa(mm)	1854
4.12	Fork expansion stroke	L（mm）	1200
5.1	Maximum travel speed, no load/full load	km/h	7/6.5
5.2	Lifting speed, no load/full load	m/s	0.330/0.245
5.3	Descent speed, no load/full load	m/s	0.260/0.325
5.4	Service brake		Electromagnetic braking
6.1	Drive motor power	kw	4.5
6.2	Boost motor power	kw	6.3
6.3	Battery type		Lead-acid battery
6.4	Battery voltage/capacitance	V/Ah	48V/300
6.5	Charger	V/Ah	48V/40A
