Astaclift

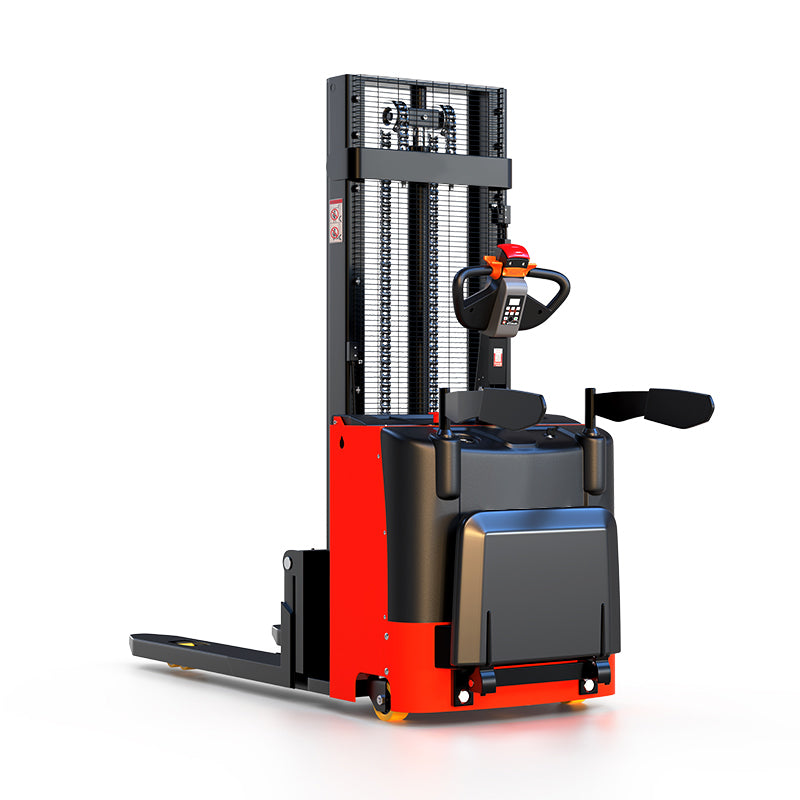

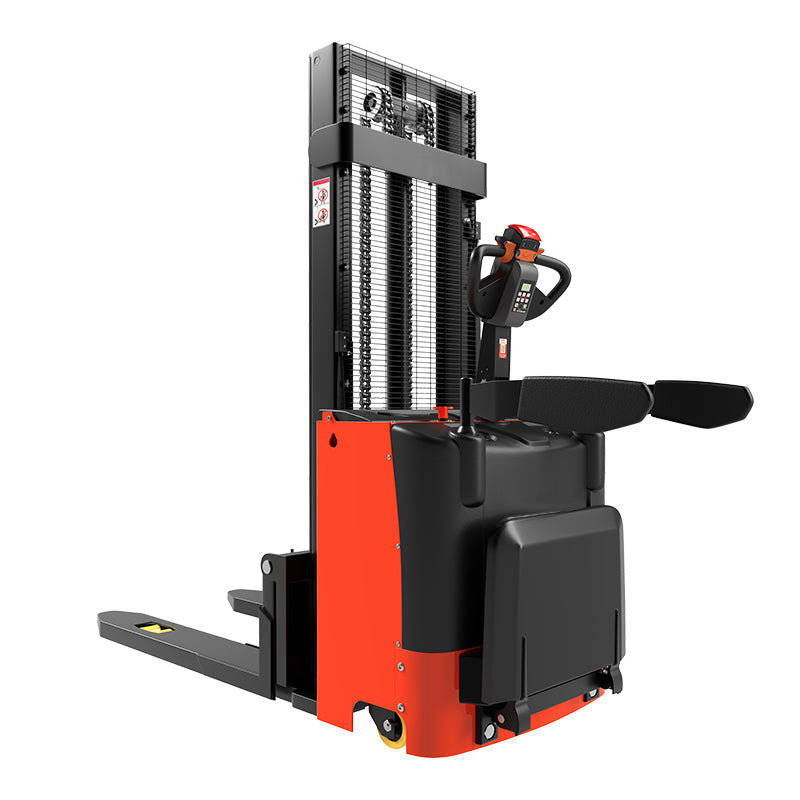

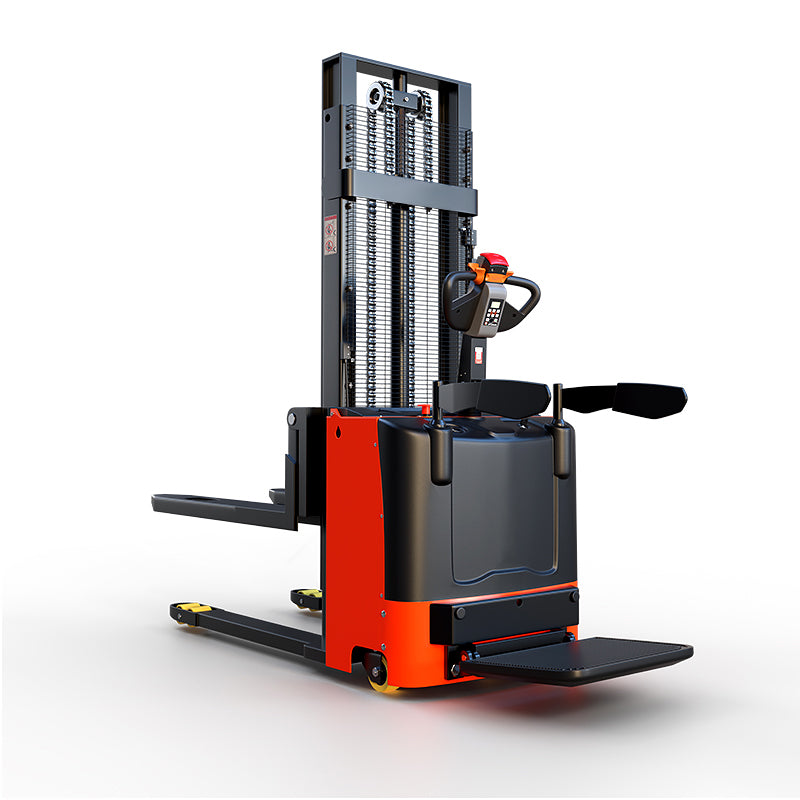

Electric Ride-Along Pallet Stacker with driver's platform

Electric Ride-Along Pallet Stacker with driver's platform

Capacity
Lifting height

This full electric stacker is a versatile solution for transport tasks in various environments, be it on high racks, in mezzanines or as a transport device in a truck. With its duplex mast and the quickly rechargeable lead acid battery, the reach truck combines efficiency and flexibility.

  • Load capacity: Up to1500kg
  • Lifting height: Optionally up to 3 m or 3.5 m , ideal for different storage requirements
  • Worm gear: Particularly suitable for confined spaces
  • Foldable stand platform: Provides a more compact overall length and an extremely low turning circle, increases comfort when maneuvering
  • Daily use: Robustly constructed for regular use
  • Maintenance-free battery: Strong lead-acid battery with the option of side removal for quick replacement
  • Integrated charging cable: Easy charging at any standard 110V-230V socket
  • Areas of application: This pedestrian stacker with stand-on platform is suitable for intensive use indoors, from warehouses to production facilities
  • HELI Forklifts-Authorized Dealer!

    World's leading brand, affordable and high quality!

Model CDD15J-RE
Capacity 1500kg
Load center 600mm
Lift height 3000mm
Mast height minimum 1995mm
Mast height maximum 3487mm
Fork size 60/180/1150mm
Fork outer width 570mm/695mm
Battery 2*12V / 120Ah
Radium 1455mm
