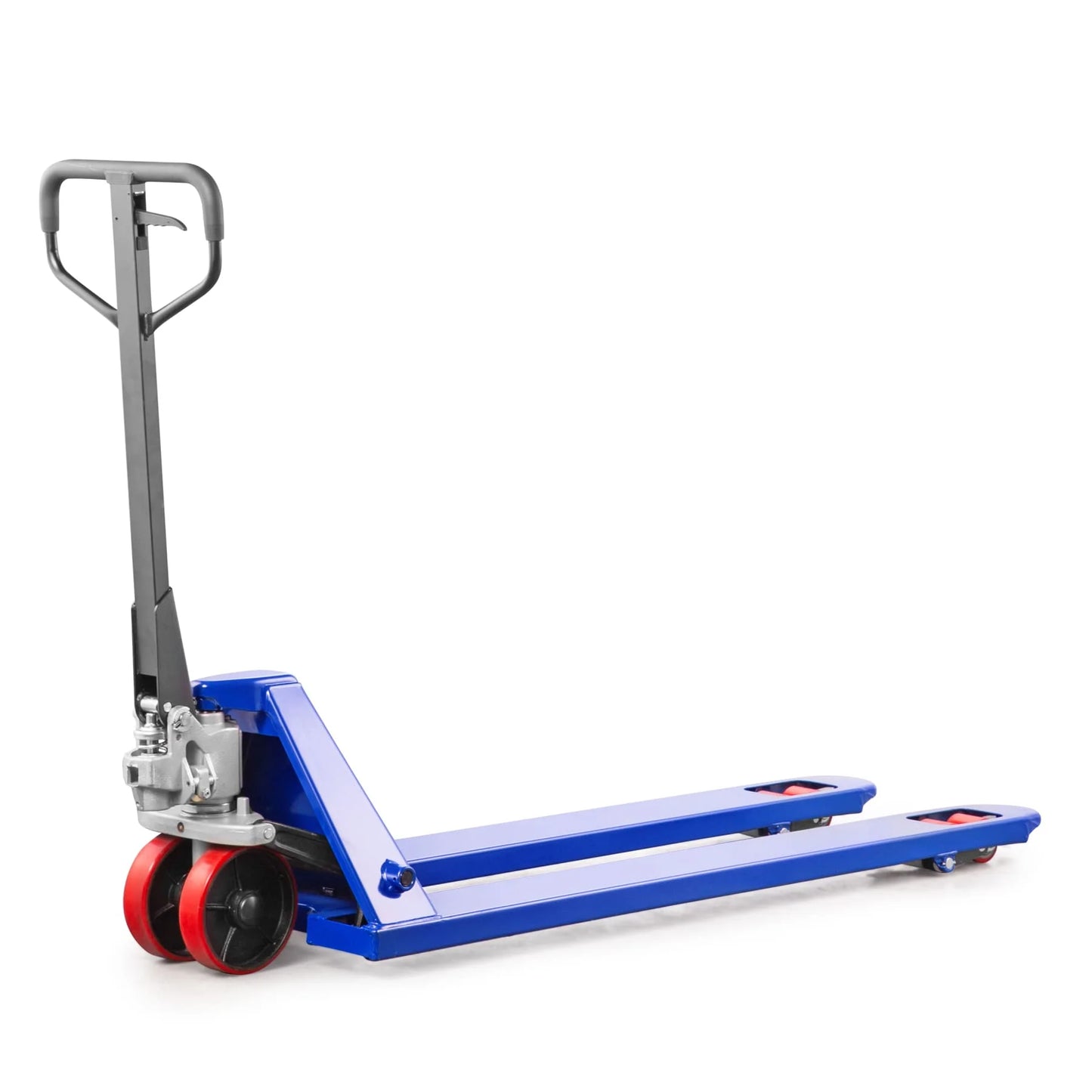

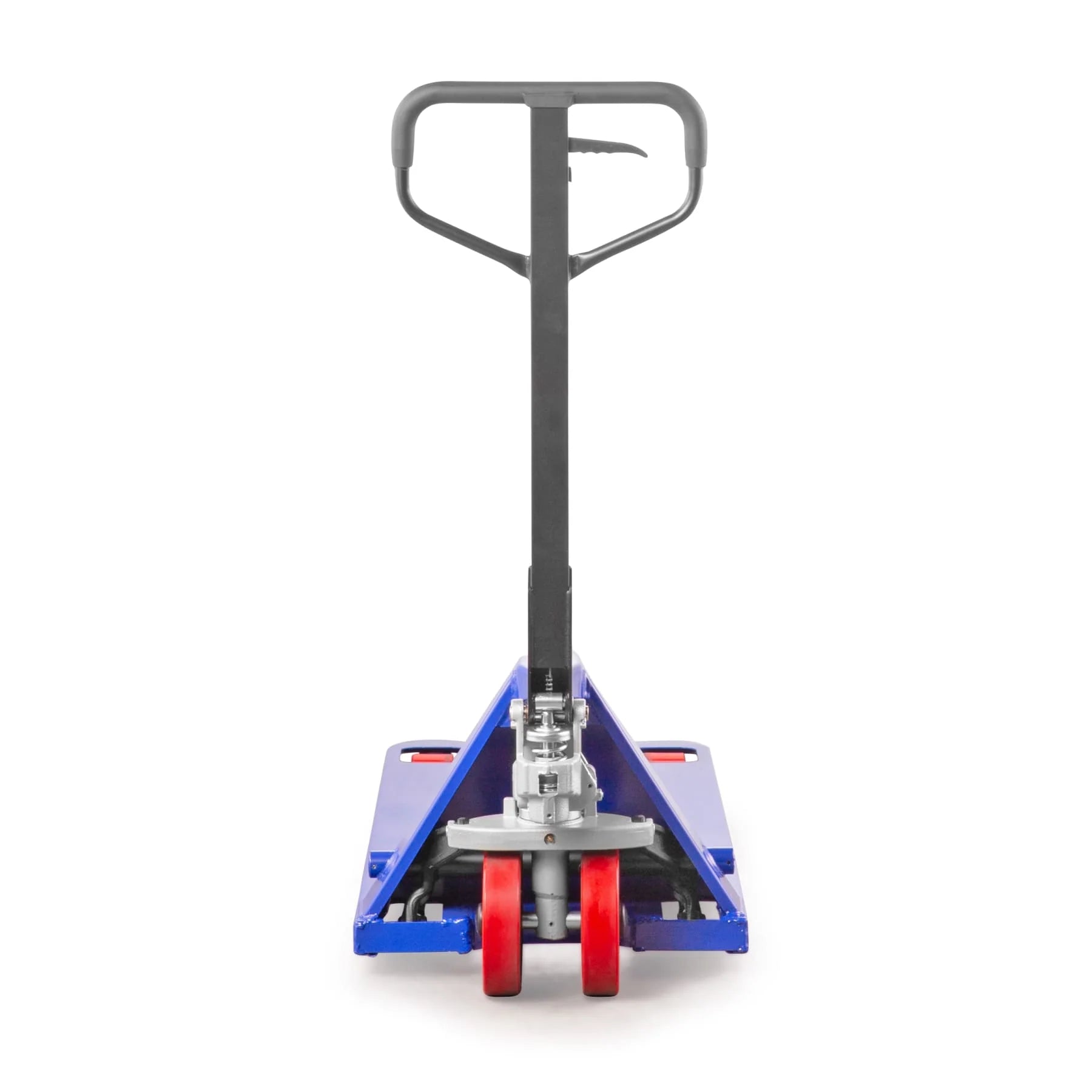

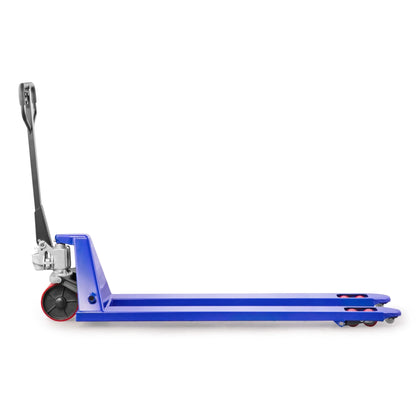

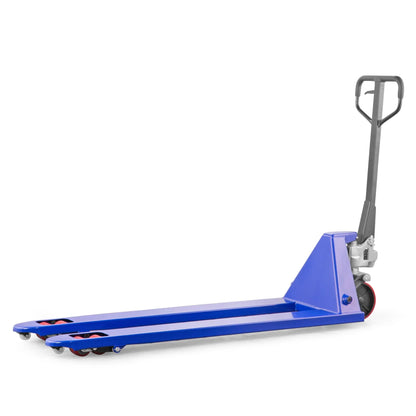

Hand Pallet Truck with 1500 mm Forks

The right choice for extra-long goods on Euro pallets or special pallets.

The pallet truck with a fork length of 1,500 mm is ideal for transporting extra-long goods or moving two Euro pallets at the same time. With its robust design and powerful hydraulic pump, it is ideally equipped for daily industrial use.

• Load capacity: Can move loads up to 2,000 kg
• Fork length: 1,500 mm, ideal for extra-long goods or two Euro pallets

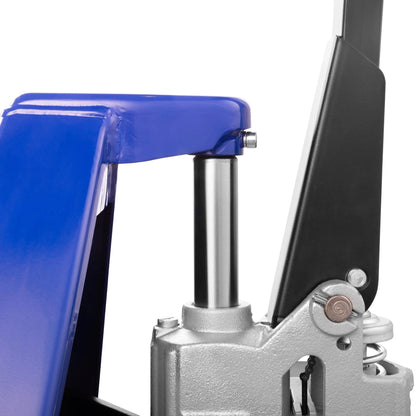

• Solid lifting mechanism: Fast lifting of loads up to 195 mm high in just 2-3 strokes
• Load rollers: Tandem rollers made of polyurethane (PU) ensure good grip and low rolling resistance, ideal for uneven surfaces
• Areas of application: Versatile, from wholesale and retail warehouses to beverage warehouses and production facilities

Technical data

Weight: 90 kg

Material: Steel

Chassis surface: Powder coated

Colour: Blue or Customized

Seal: CE

Wheels material: Polyurethane (PU)

Steering wheel diameter: 200 mm

Steering wheel width: 50 mm

Fork roller type: Tandem

Load roller wheel diameter: 80 mm

Fork roller width: 70 mm

Lift height: 195 mm

Lift type: Manual hydraulic

Delivery: Forwarding agency

Delivered as: Rolling (fully assembled)

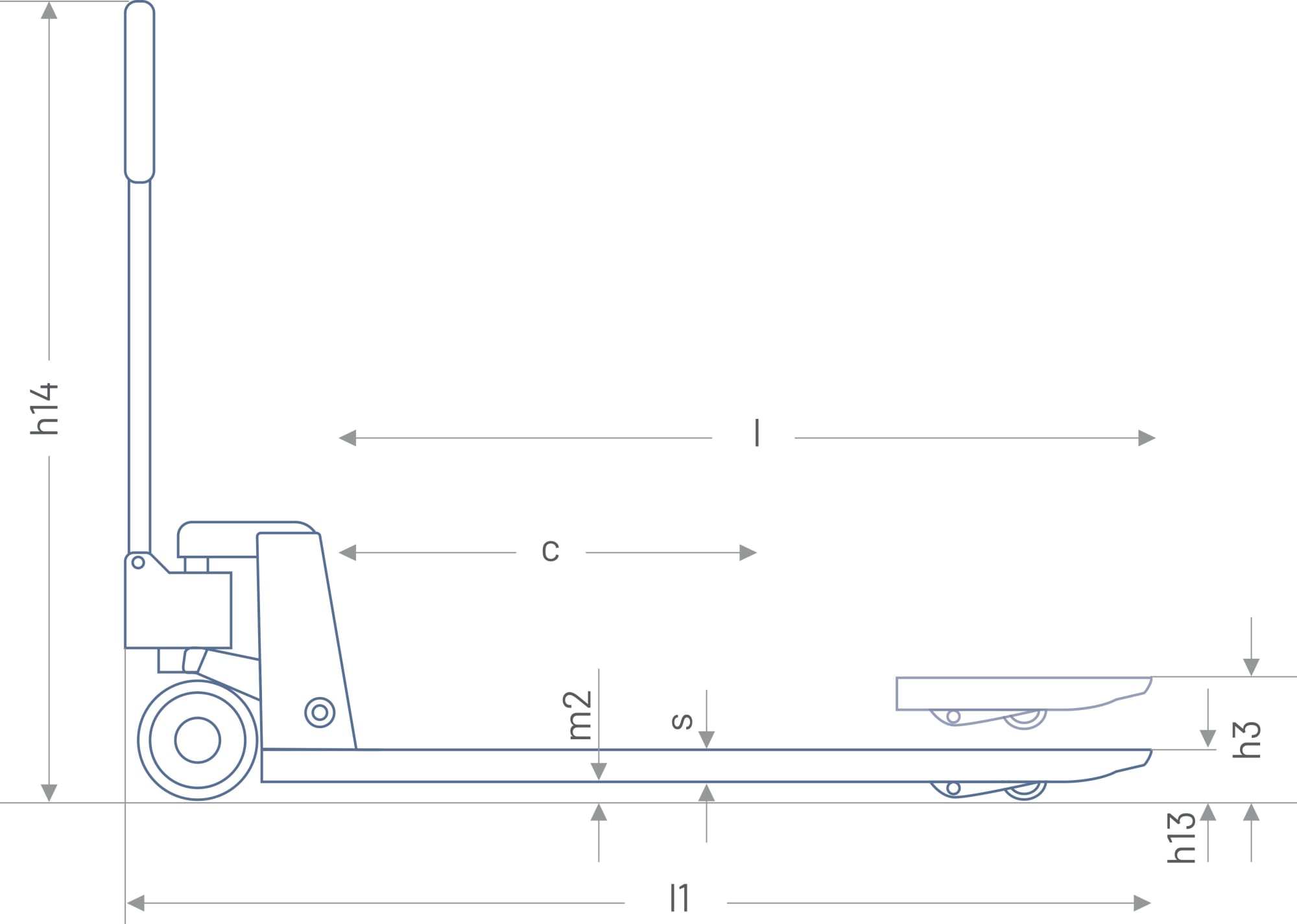

• l: Fork length-1500 mm

  h3: Lift height -195 mm

  c: Load centre- 600 mm

  h12: Lift height, effective- 110 mm

  h14/h4: Height- 1230 mm

  l1: Length-1895 mm

  m2: Ground clearance- 30 mm

  h13: Ground clearance, outer - 85 mm









  b5: Fork width, outer distance-540 mm

  e:  Fork width, single fork-160 mm

  Ast: Aisle width for 1200x800-1745 mm

  Wa: Turning radius-1275 mm

  Distance between forks: 220 mm
