Astaclift

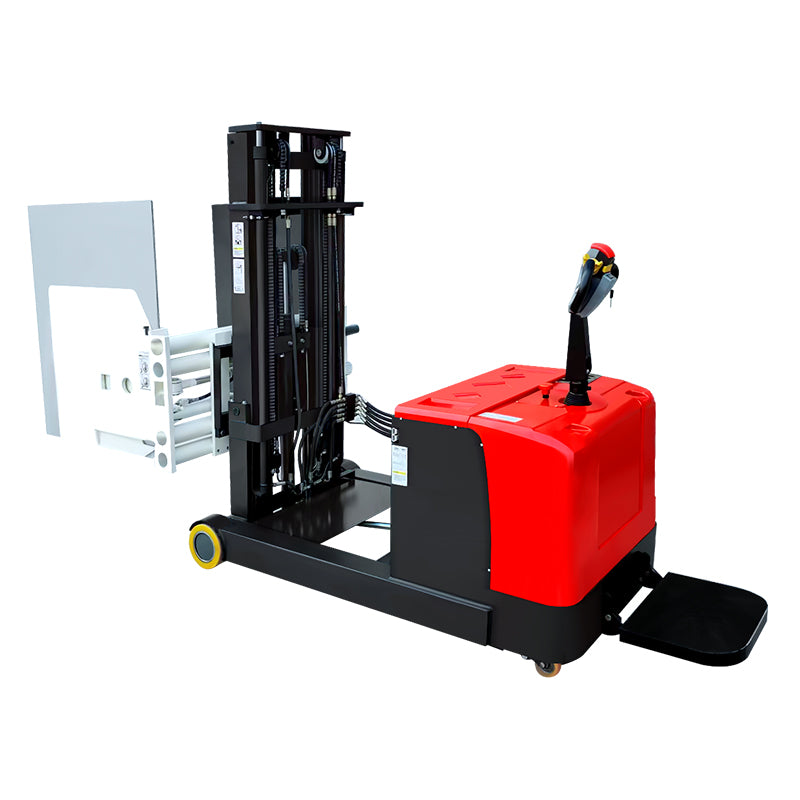

Reach Stacker with Customized Clamp
Reach Stacker with Customized Clamp
Couldn't load pickup availability
This full electric stacker is a versatile solution for transport tasks in various environments, be it on high racks, in mezzanines or as a transport device in a truck. With its duplex mast and the quickly rechargeable lead acid battery, the reach truck combines efficiency and flexibility.
- Load capacity: Up to 2000kg
- Lifting height: ideal for different storage requirements, can be customized
- Worm gear: Particularly suitable for confined spaces
- Daily use: Robustly constructed for regular use
- Maintenance-free battery: lead acid batteries, capacity can be choose
- Integrated charging cable: Easy charging at any standard 110V-230V socket
Description | unit | specification | |
Basic parameter | Product model | CQD | |
Power unit | DC MOTOR | ||
Basic size | The vehicle height (lowest pallet fork) | mm | 100/1630 mm /1870/2120/2380/1950/2110/2280 |
The vehicle height (highest goods fork) | mm | 2370/2740/3240/3750/4250/4750/5230/5770 | |
Vehicle length | mm | 2700 | |
Vehicle width | mm | 1000 | |
Fork size/Clamp | mm | Customized | |
actuate | Drive motor power | KW | 1.5 |
Increase motor power | KW | 2.2 | |
Battery voltage/Capacitance | V/Ah | 24V/150Ah (optional) | |
property | Braking mode | Electromagnetic braking |
