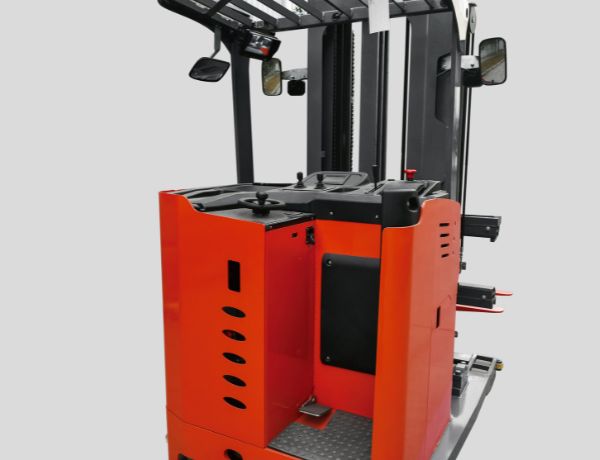

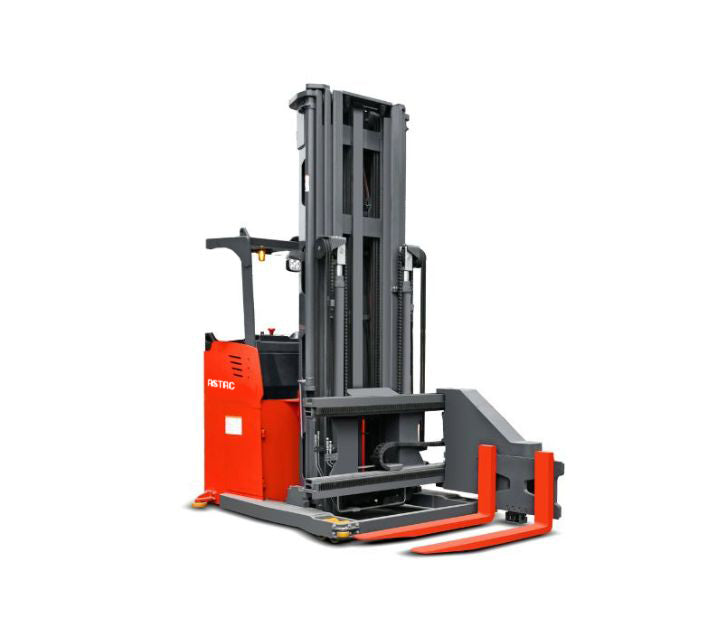

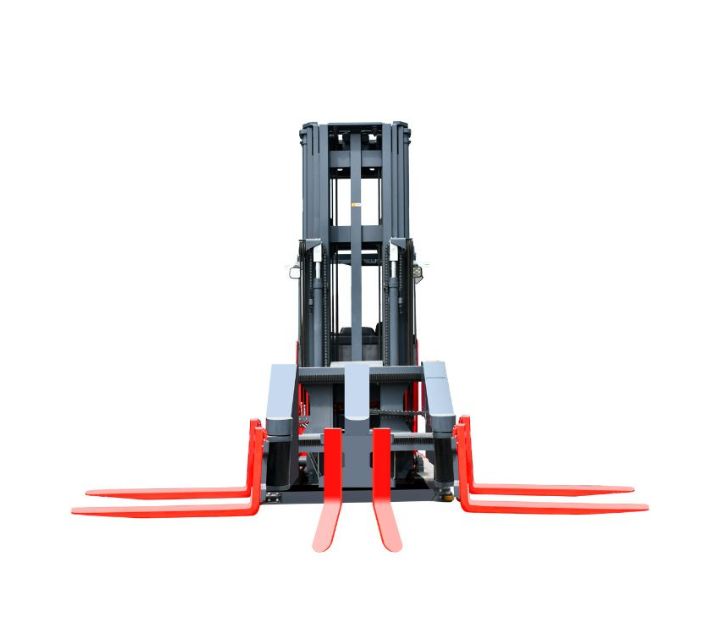

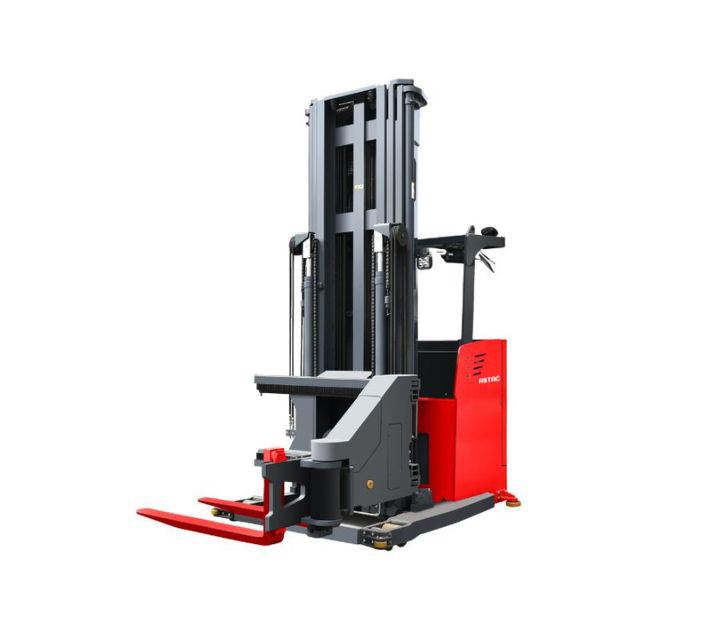

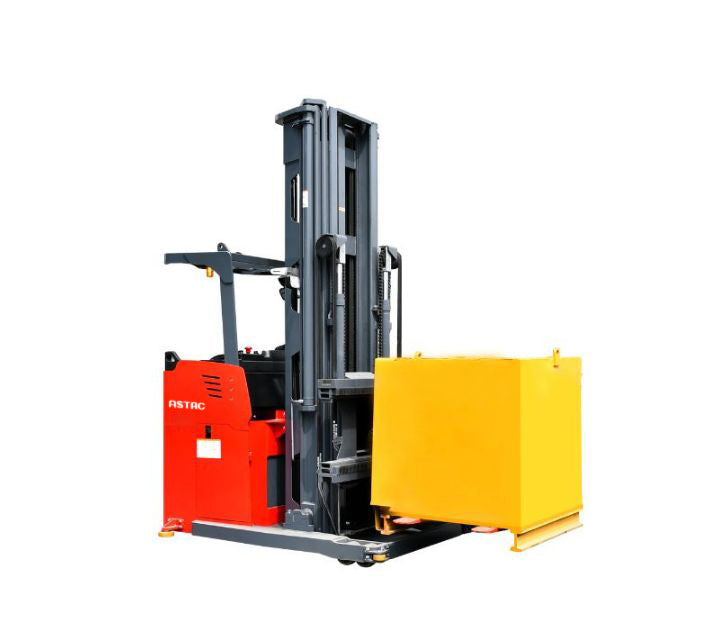

Stand-on 3-WAY Pallet Stacker 1.2-1.6 ton

Load Capacity 1200kg 1600kg

Lift Height 1.5Meters 1.6Meters

Quantity

The 3-WAY Pallet Stacker is engineered for optimal performance in narrow aisles and high lifting scenarios, offering excellent visibility to enhance warehouse utilization and streamline goods handling. It allows you to maximize space, simplify cargo handling, stacking, and picking, and boost overall efficiency.

Product Description:

Model: MC12 / MC16
Load capacity: 1200kg / 1600kgs
Minimum stacking aisle width: 1.5meters / 1.6meters
Standard lifting height: 9m / 10m
Type: Man-down 3-WAY Pallet Stacker

Applications:

Stacking and handling of goods in dense storage of mid to high level shelves and narrow aisles;

Picking and inventory of goods in dense storage of mid to high level shelves and narrow aisles.

Technical Data

Model		MC12	MC12SQ	MC16	MC16SQ
Power Type		Battery	Battery	Battery	Battery
Load capacity	Q(kg)	1200	1200	1600	1600
Load Center Distance	C(mm)	550	550	600	600
Overall length	l1(mm)	2940	2940	3020	3020
Overall width	b1(mm)	1475[1]	1475[1]	1575[1]	1575[1]
Fork dimensions	l/e/s(mm)	1100/125/50	1100/125/50	1200/125/50	1200/125/50
Turning radius	Wa(mm)	1910	1910	1980	1980
Main aisle width	Wa(mm)	≥(3350+350)[3]	≥(3350+350)[3]	≥(3450+350)[3]	≥(3450+350)[3]
Drive motor, rating S2=60	kw	5.5 AC	5.5 AC	5.5 AC	5.5 AC
Lift motor, rating S3=15%	kw	15 AC	15 AC	15 AC	15 AC

Characteristcs

1. Stability

The drive motor uses an advanced transverse parallel layout, placing the battery at the vehicle’s bottom for a lower center of gravity, enhancing stability, smooth turning, and comfortable driving control.

Features like upper limit positioning, automatic descent speed sensing, and descent cushioning function effectively reduce fork sway at higher positions.

Utilizes a new imported CURTIS controller for advanced reliability.

International advanced MOSFET AC control system enables computer-programmed control for forklift movements like travel, steering, lifting, and tilting.

2. High Performance

(1) Superior Power, Ultra-Low Energy Consumption, Extended Durability: Two high-power drive motors, 18.5KW and 16.3KW, ensure stable and ample power output. A 15KW lifting A/C motor provides sufficient hydraulic power for smooth fork movements. Higher voltage, lower current, and optimized vehicle energy consumption ensure long-lasting endurance.

(2) Features like ascent limit, automatic sensing descent speed control, and descent buffering functions effectively ensure operational safety while protecting goods and pallets from ground impact.

(3) Hydraulic system includes side shifting and fork positioner for enhanced convenience and efficiency.

3. Maximum Efficiency

(1) Indoor Handling and Stacking Made Simple：Articulated forklift can efficiently transports goods from outdoor to indoor rack positions, enabling precise stacking and significant time savings.

(2) Equipped with large-diameter rubber tires, operators can easily perform loading and unloading tasks on semi-rough terrain, ensuring smooth driving regardless of the ground conditions.

(3) 1.9-meter narrow aisle operation: The articulated forklift’s wide mast swing angle design reduces rack aisle widths to as low as 1.9 meters, allowing for more shelving and significantly increasing warehouse capacity.

(4) 210-degree flexible steering: The vehicle’s mast can rotate 210 degrees, offering an ultra-small turning radius for flexible and comfortable operation, while maintaining the efficiency of traditional counterbalance forklifts

4. Comfort & Safety

(1) Adjustable steering wheel tilt and seat provide operators with a comfortable driving position.

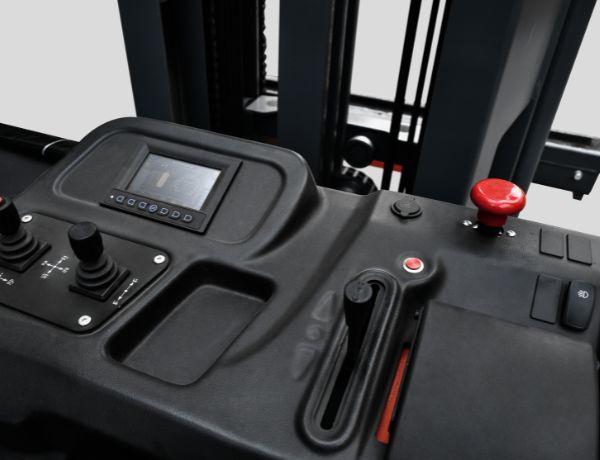

(2) Large LED dashboard screen features battery level display, timer, and diagnostic functions, ensuring comprehensive functionality and clear readings.

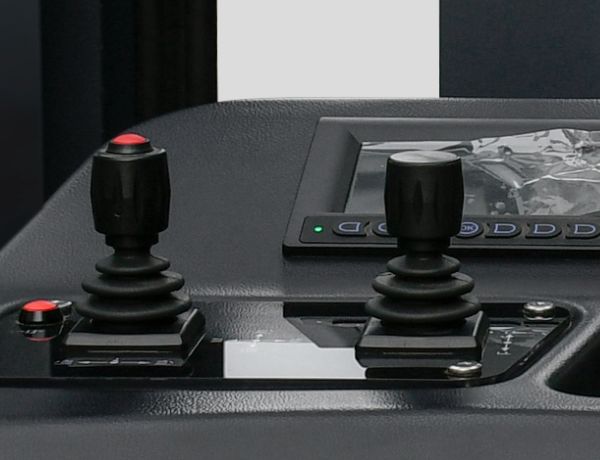

(3) Ergonomically designed control levers, dashboard, and switches, enhance comfort and flexibility during operation.

Open cabin
Electric steering
Wide-view mast
Ultra-low overhead guard
LED headlight, turning light and warning light are energy-efficient
Operator Presence Sensing (OPS) system

5. Maintainability

(1) Maintenance-free AC motor, high efficiency with complete protection features. It includes speed and temperature sensors, ensuring high reliability and long lifespan. No maintenance costs for replacing carbon brushes.

(2) Wide-opening engine hood and detachable rear door panel facilitate easy battery replacement and maintenance.
