Astaclift

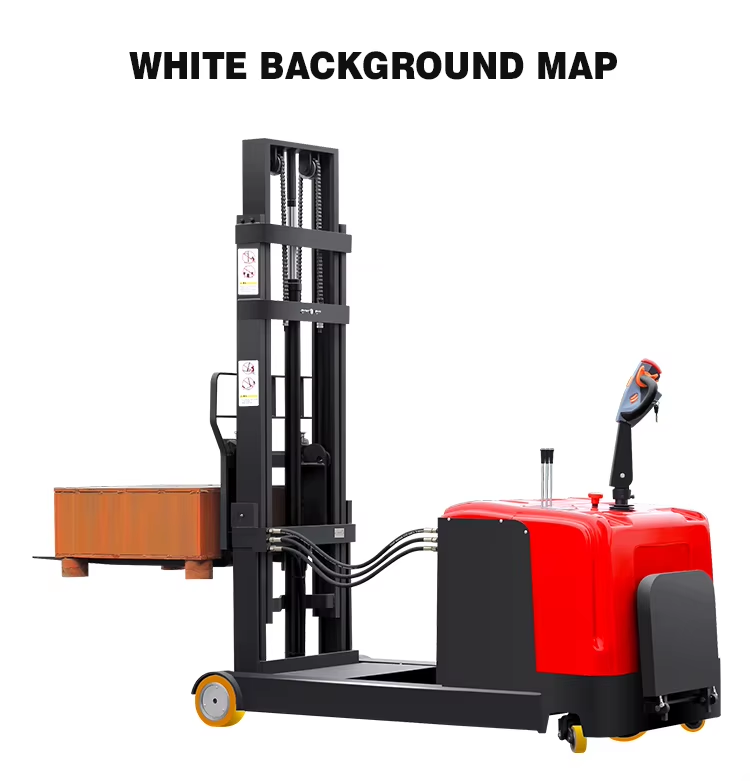

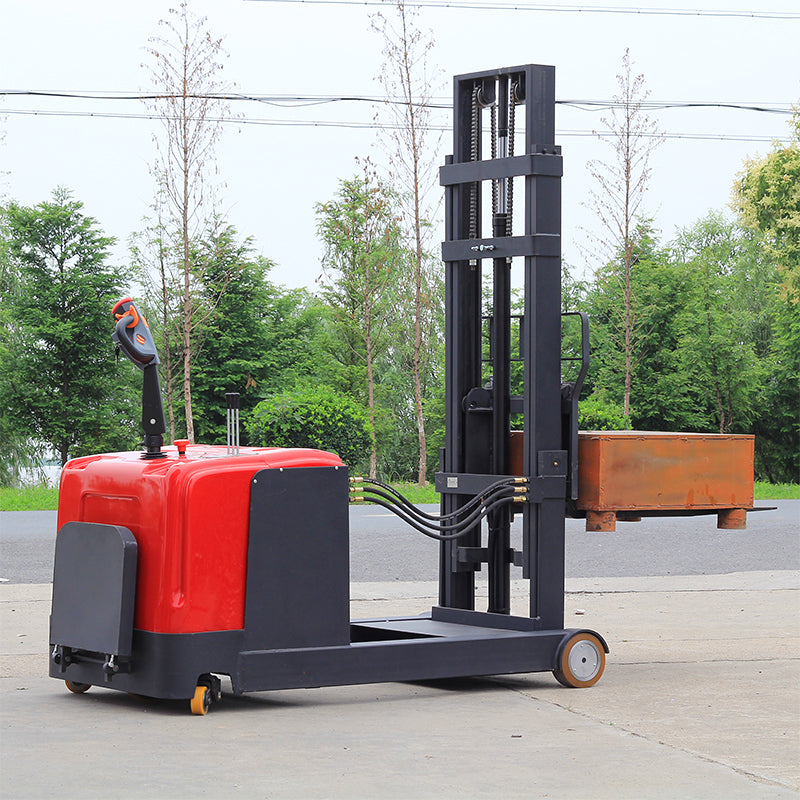

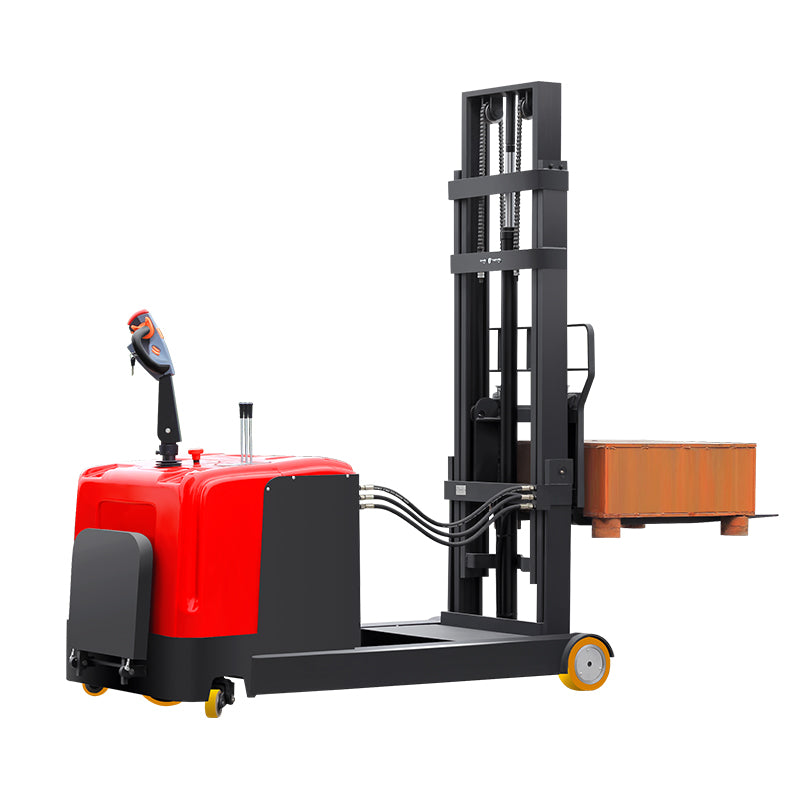

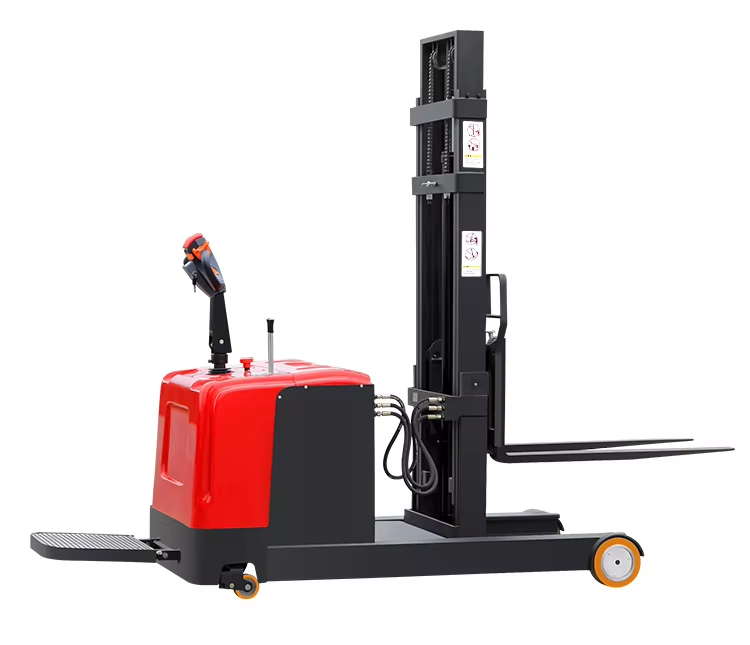

Stand on type Balanced Stacker Truck

Stand on type Balanced Stacker Truck

Capacity
Lifting height

This full electric stacker is a versatile solution for transport tasks in various environments, be it on high racks, in mezzanines or as a transport device in a truck. With its duplex mast and the quickly rechargeable lead acid battery, the reach truck combines efficiency and flexibility.

  • Load capacity: Up to 1500kg
  • Lifting height: Optionally up to 3 m or 3.5 m , ideal for different storage requirements, can be customized to 5m
  • Worm gear: Particularly suitable for confined spaces
  • Daily use: Robustly constructed for regular use
  • Maintenance-free battery: lead acid batteries, capacity can be choose
  • Integrated charging cable: Easy charging at any standard 110V-230V socket

Description unit specification
Basic parameter Product model   CQD
Power unit   DC MOTOR
Basic size The vehicle height (lowest pallet fork) mm 100/1630 mm /1870/2120/2380/1950/2110/2280
The vehicle height (highest goods fork)  mm 2370/2740/3240/3750/4250/4750/5230/5770
Vehicle length  mm 2700
Vehicle width mm 1000
Fork size mm mm 1070*100*35
actuate Drive motor power KW 1.5
Increase motor power KW 2.2
Battery voltage/Capacitance V/Ah  24V/150Ah (optional)
property Braking mode   Electromagnetic braking
