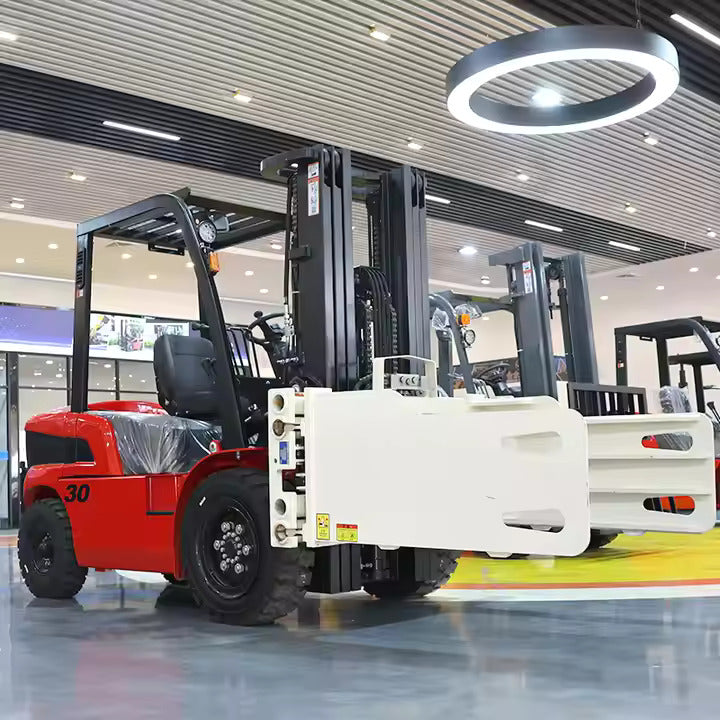

Telescopic Reach Stacker Forklift 3 Ton diesel Forklift with Attachments
Telescopic Reach Stacker Forklift 3 Ton diesel Forklift with Attachments
Couldn't load pickup availability

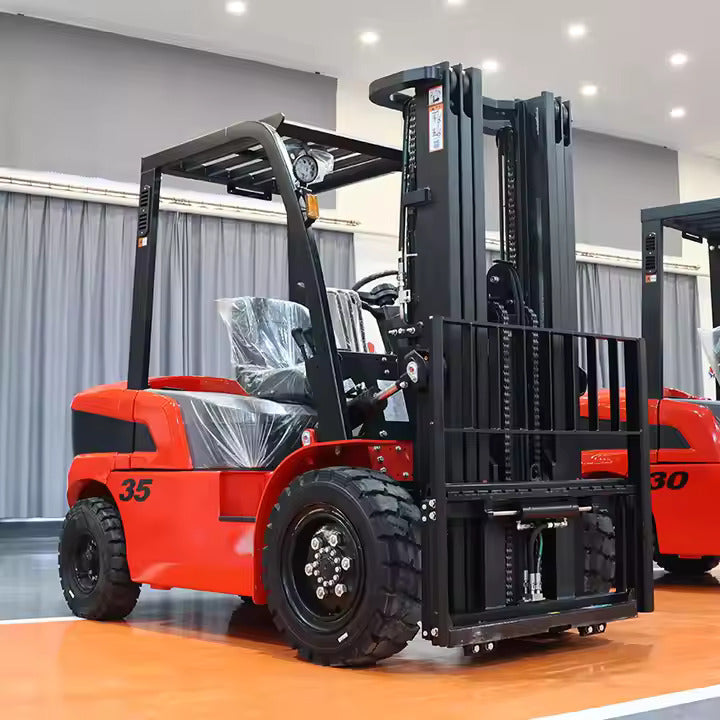

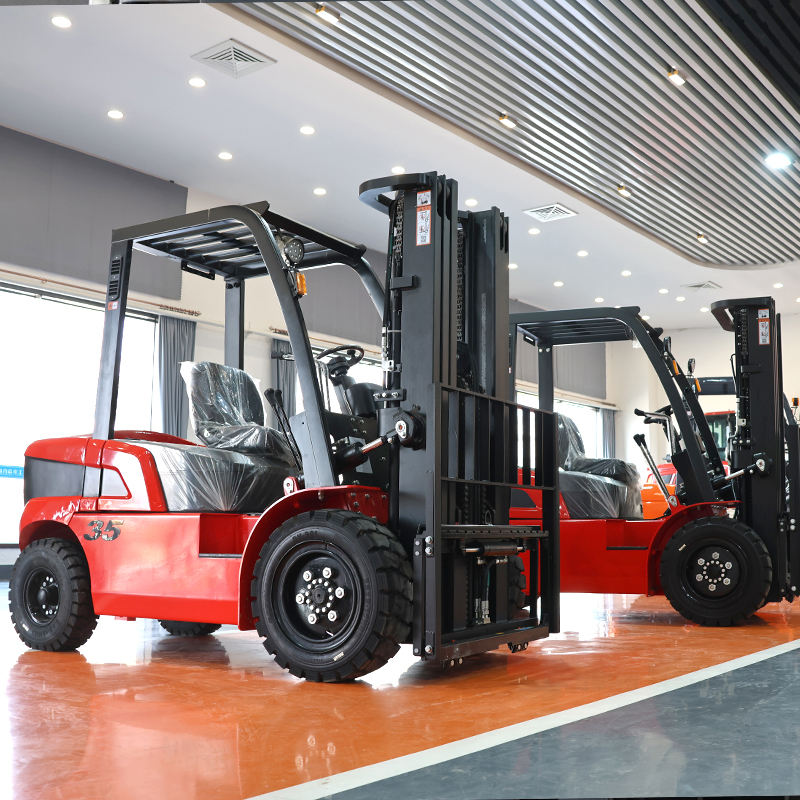

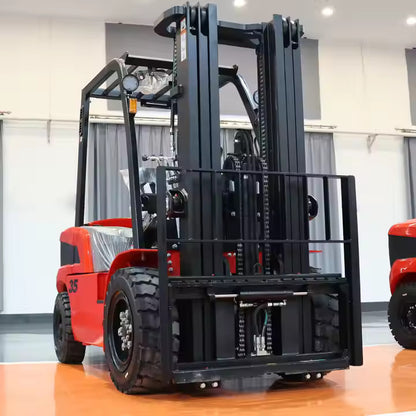

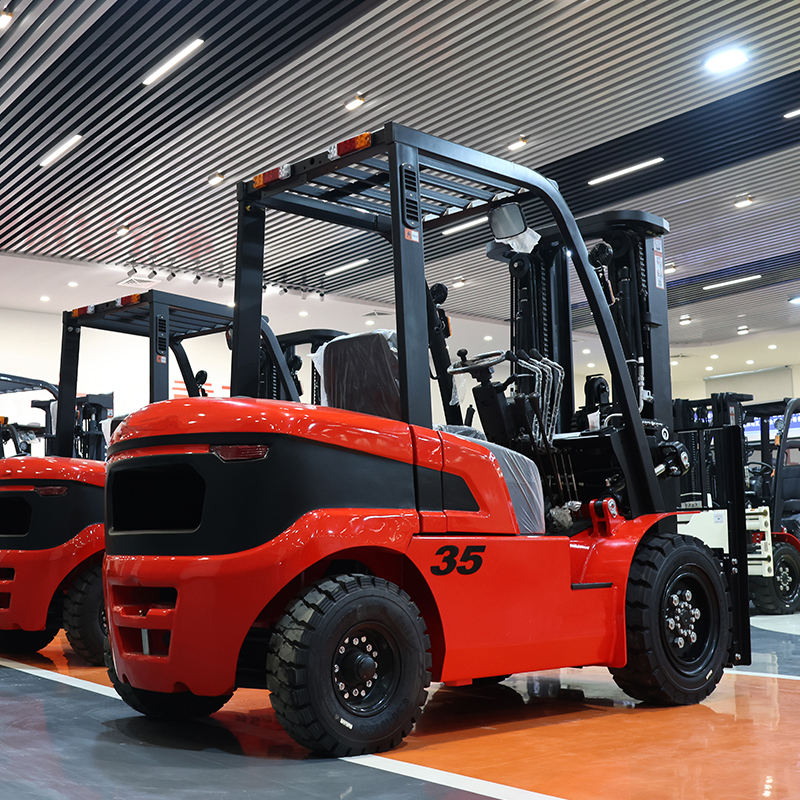

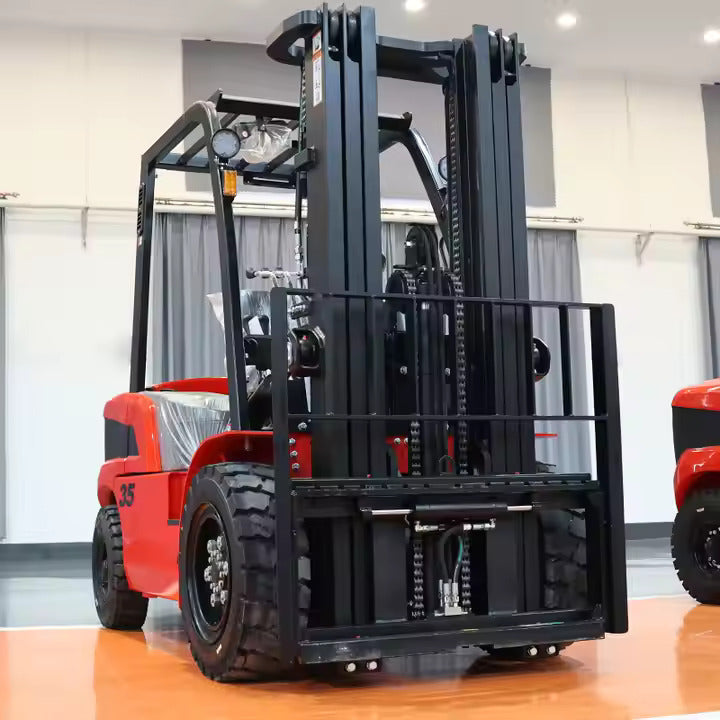

Description of diesel forklift truck:
Diesel forklift truck, rated weight 2- 10 tons advantages:
1. The full hydraulic power steering mechanism, flexible steering
2. Transmission independent from the front bridge, more convenient maintenance
3. The cylinder adopts imported sealing ring, prevent oil leakage
4. The more solid gantry type structure, improve
5. High chassis, large ground clearance, high passability, high configuration, high performance, low fuel consumption, beautiful appearance, wide application range, etc., can provide supporting tools
We are a professional manufacturer that can produce rated loading capacity 1.5 to 10 tons of forklifts and provide customized services according to customer needs.
Parameters of some models
|
Model
|
CPD15
|
CPD25
|
CPD40
|
CPD80
|
LD-D100
|
|
Rated load
|
1500kg
|
2500kg
|
4000kg
|
8000kg
|
1000kg
|
|
Load center distance
|
500mm
|
500
|
500
|
600mm
|
600mm
|
|
Free lifting height
|
100mm
|
150mm
|
150mm
|
200mm
|
200mm
|
|
Overall length (withforks/without forks)
|
3180/2260mm
|
3646/2576mm
|
4000/2930mm
|
5175/3955mm
|
5497/4277mm
|
|
Overall width
|
1090mm
|
1170mm
|
1290mm
|
2245mm
|
2245mm
|
|
Overall height (roof rack)
|
2050mm
|
2070mm
|
2180mm
|
2570mm
|
2570mm
|
|
Wheelbase
|
1400mm
|
1600mm
|
1900mm
|
2800mm
|
2800mm
|
|
Minimum ground clearance (at gantry)
|
110mm
|
110mm
|
140mm
|
250mm
|
250mm
|
|
Mast tilt (front/rear)
|
6°/12°%
|
6°/12°%
|
6°/12°%
|
6°/12°%
|
6°/12°%
|
|
Tire size (front)
|
6.5-10-10PR
|
7.00x12-12PR
|
250-15-16PR
|
9.00-20NHS
|
9.00-20NHS
|
|
Tire Size (Rear)
|
5.00-8-10PR
|
6.00x9-10PR
|
7.00-12-12PR
|
9.00-20NHS
|
9.00-20NHS
|
|
Minimum Turning Radius Outside
|
1950mm
|
2240mm
|
2710mm
|
3755mm
|
4150mm
|
|
Minimum Right Angle Aisle Width
|
3630mm
|
3970mm
|
4750mm
|
5755mm
|
6010mm
|
|
Fork dimensions (L x W x D)
|
920x100x35mm
|
1070X100X45mm
|
1070x150x50mm
|
1520x170x70mm
|
1520x175x85mm
|
|
Maximum traveling speed (full/no load)
|
14/15km/h
|
17/19km/h
|
19/19km/h
|
20/26km/h
|
20/26km/h
|
|
Max. lifting speed (full/no load)
|
500/480mm/s
|
530/550mm/s
|
340/380mm/s
|
330/350mm/s
|
330/350mm/s
|
|
Maximum gradient (fully loaded/unloaded)
|
20%/21%
|
20%/21%
|
15%/20%
|
15%/20%
|
15%/20%
|
|
Overall weight
|
2900kg
|
3680kg
|
4950kg
|
11800kg
|
12410kg
|
|
Engine
|
Quanchai
|
Quanchai
|
Quanchai
|
Quanchai
|
Quanchai
|
